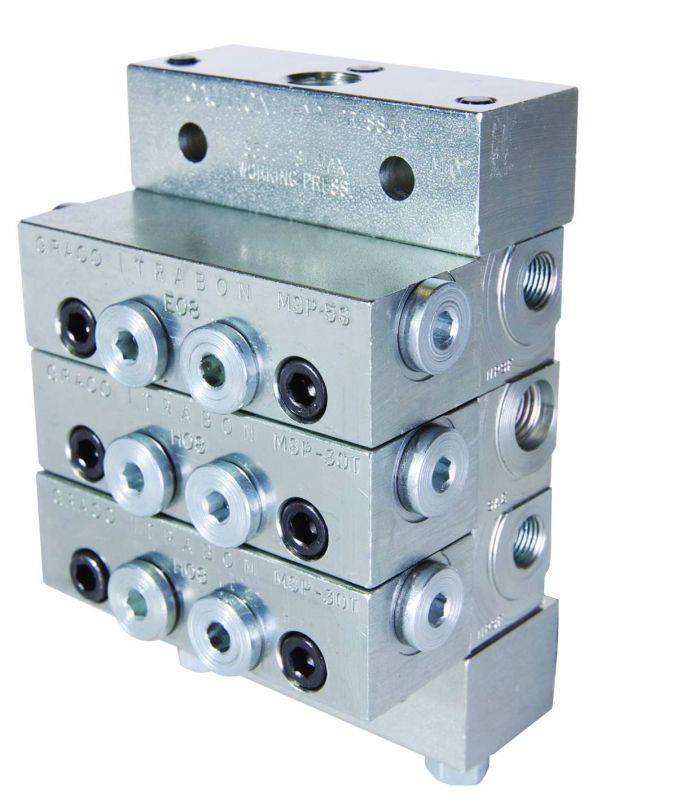

MSP Modular Divider Valves

Modular design for total flexibility. One valve assembly serves up to 16 points.“O” ring sealing throughout prevents leakage. Built-in check valves prevent lube re-entry and help keep lines full.

Progresivní rozdělovač MSP

MODULAR MSP DIVIDER VALVE

Flexible modular dividers MSP to oil and grease NLGI class 000-2

  • Precise monitoring, positive feedback
  • Simple to install and operate
  • Modular design for total flexibility
  • For grease or oil systems up to 3,500 psi (241 bar)
  • Lubricate up to 16 points per valve assembly
  • Choice of SAE, NPSF, or BSPP inlet/outlet connections
  • O-ring sealing prevents leaks, reduces maintenance
  • Individual valve outputs vary by a maximum ratio of 16:1
  • Built-in check valves preventlube re-entry and help keep lines full
  • Stackable design simplifies installation, adds flexibility
  • Available in carbon steel with standard yellow zinc dichromate plating.
  • Contact Lubriquip's factory regarding 316 stainless steel for corrosive applications

SPECIAL INLET SECTIONS

  • Allow zoning of large systems served by single pump and reservoir
  • Choice of inlet port activation: electric or pneumatic
  • Simpler to install, add or remove points
  • Choice of SAE, NPSF, BSPP (ISO 1179) metric (ISO 6149) connection

The nominal delivery amount:

  • 0,082 cm3 - 1,311 cm3 (/ stroke / outlet)

TECHNICAL DATA

Standard stainless steel material
Optional .................. Material Type 316 stainless steel
O-ring seals .............(Standard) 70 Durometer Buna-N
(Optional) 70 Durometer Viton
Pressure (max.) ........3500 psi (241 bar)
Temperature (max.) ...Buna N Seal 200 ° F (93 ° C)
Viton gasket 3500F (177 ° C)
Lubricant oil or grease
